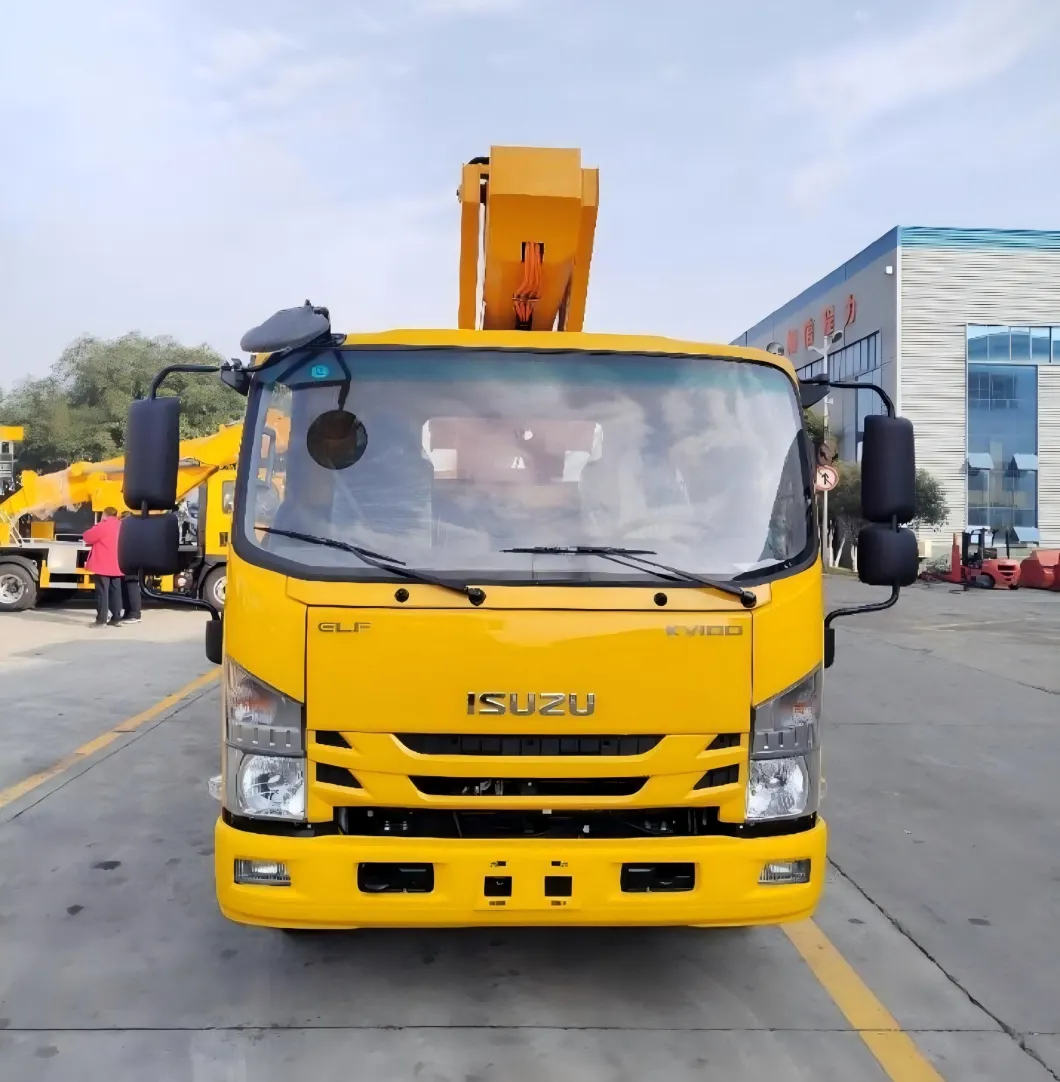

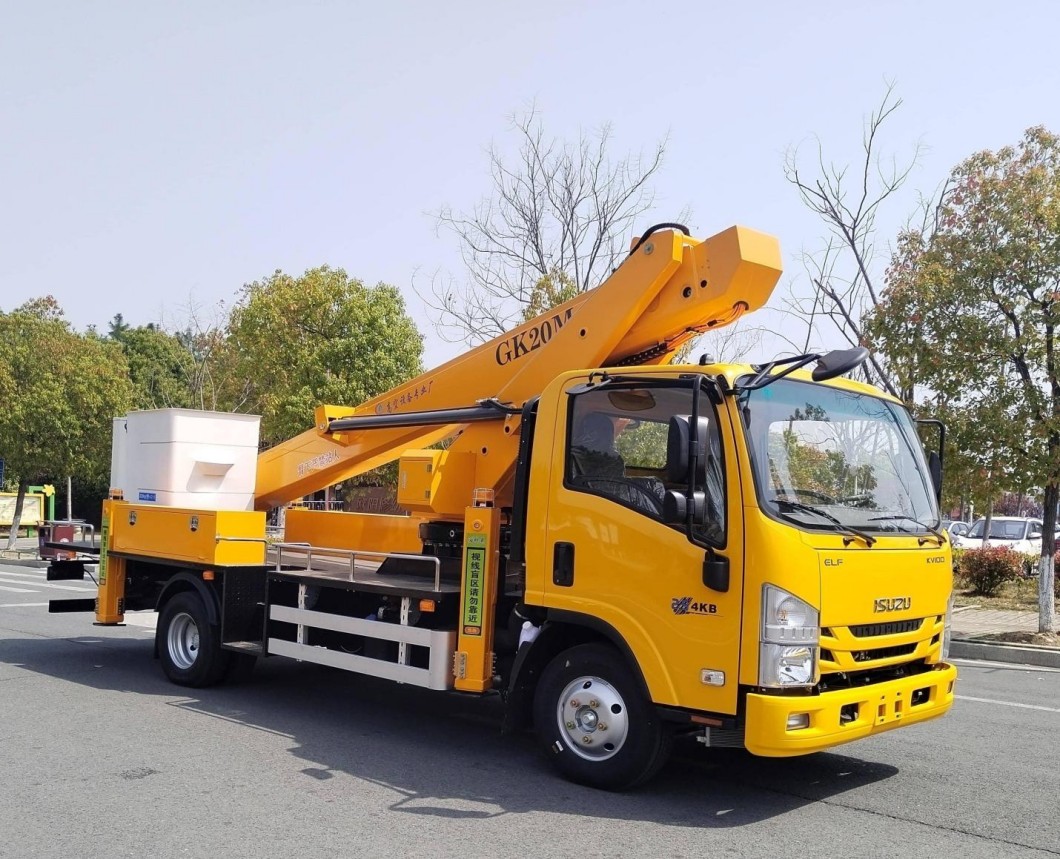

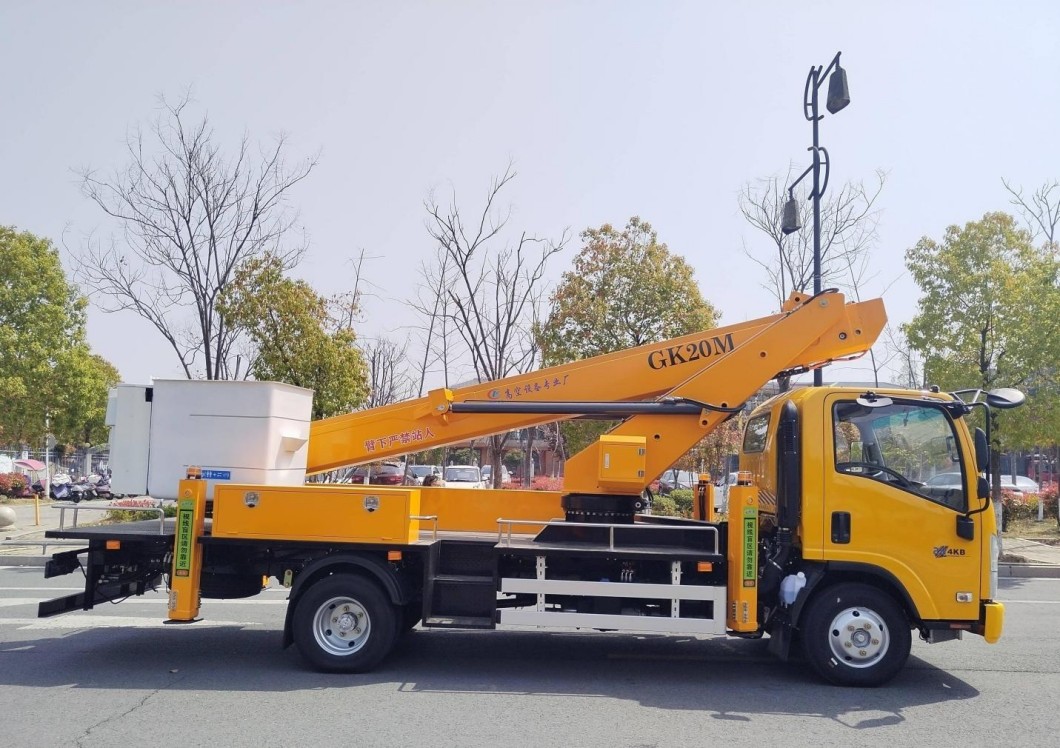

Chassis model: National VI KV100 wide cab, Chassis model: QL1073BUKAY, Wheelbase 3815, Air brake, Isuzu 4KB1-TCG60 engine National VI emission

2.5L 130 horsepower, Isuzu 5-speed transmission, 7.00R16 tires, air conditioning, power steering, central locking, power windows, front axle 2.5 tons,

rear axle 4.8 tons.

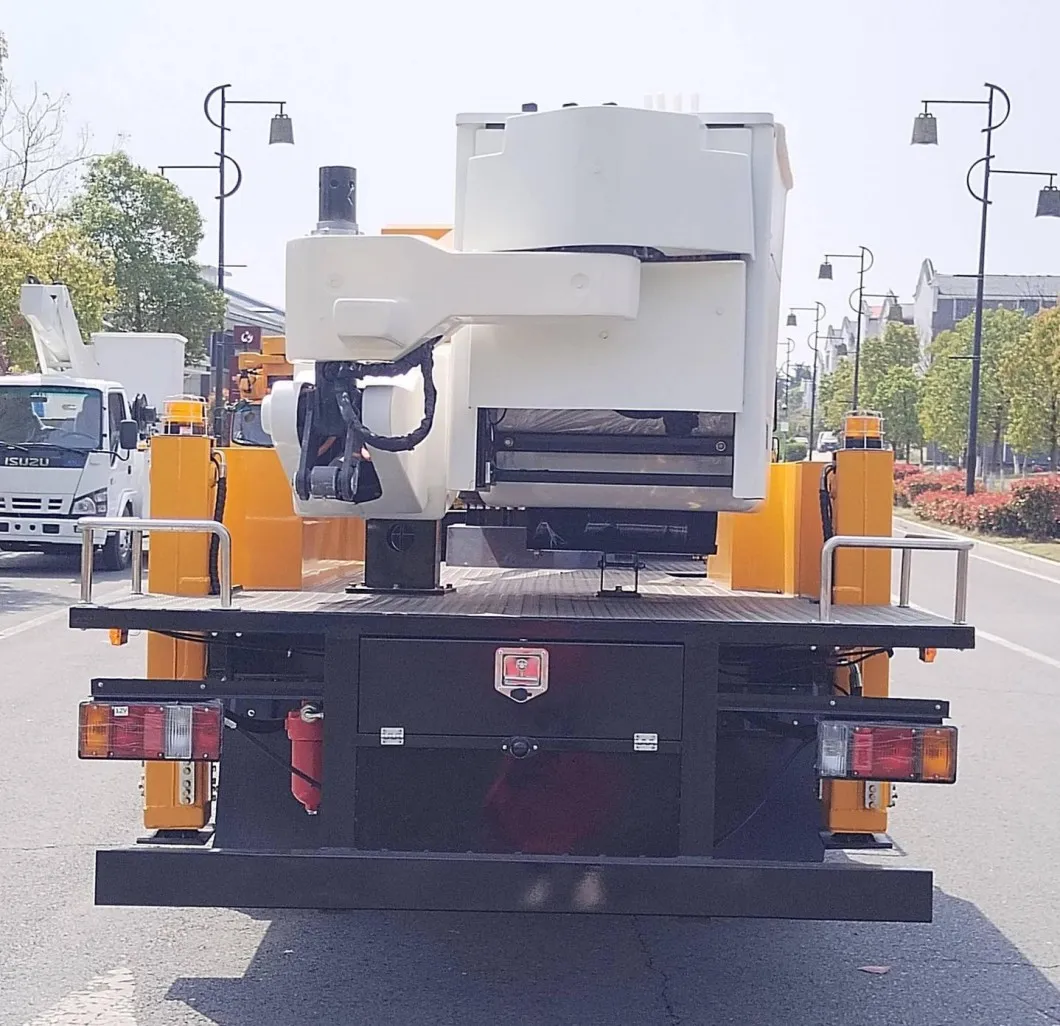

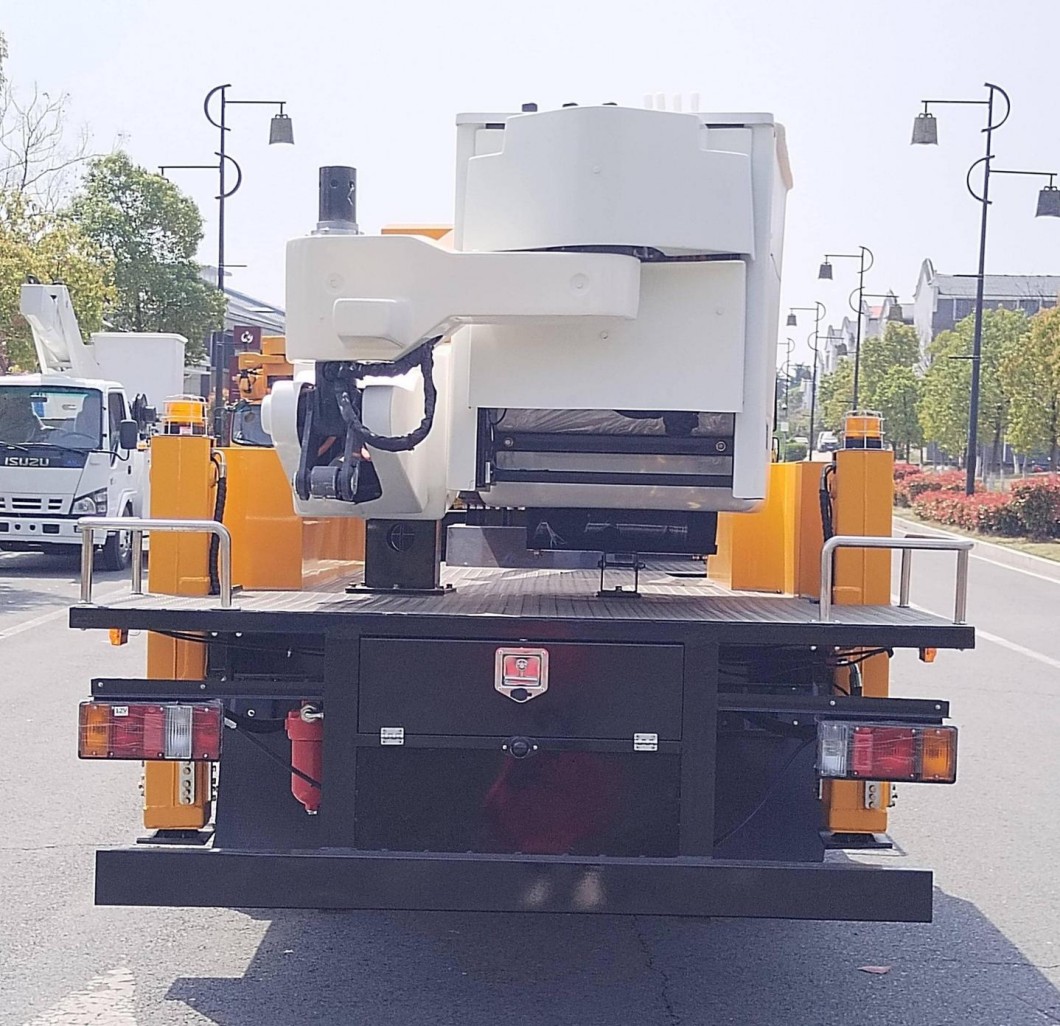

Upper assembly configuration:

Overall dimensions: 7270x2080x3080 (3180)

Total mass: 7300kg

Rated voltage: 69KV

Insulated bucket rated load: 220kg

Platform rotation: 360°

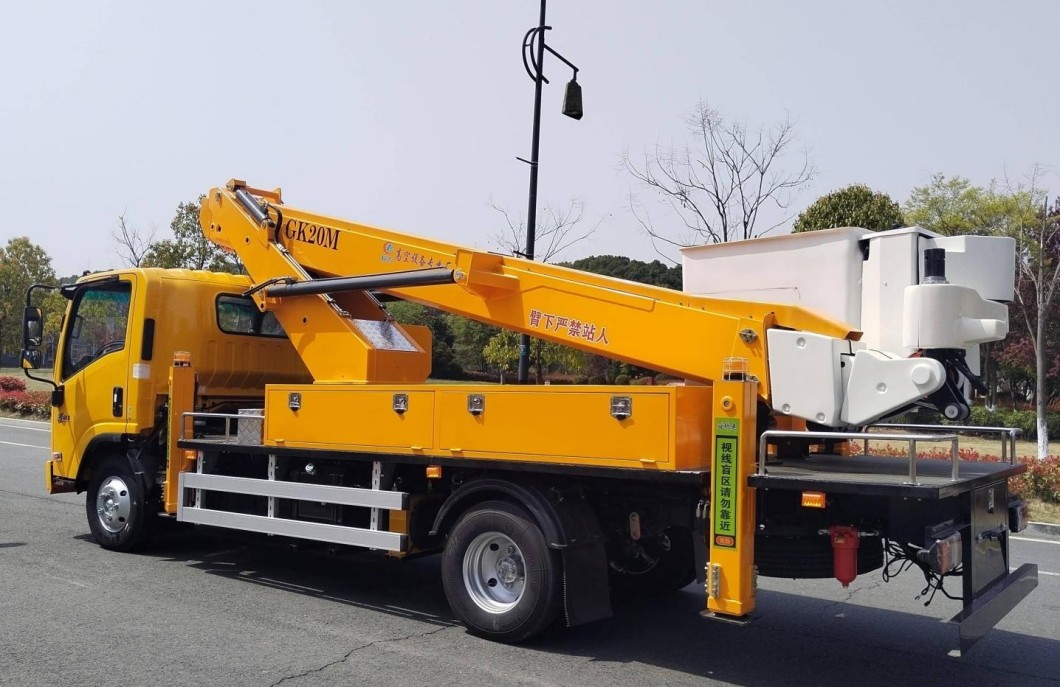

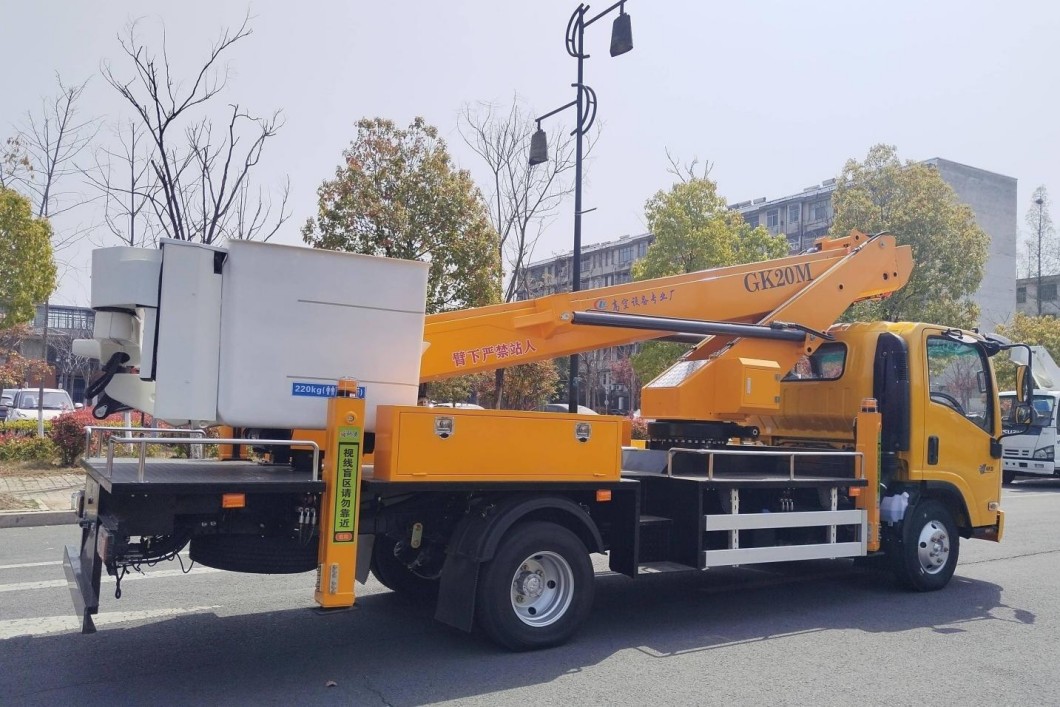

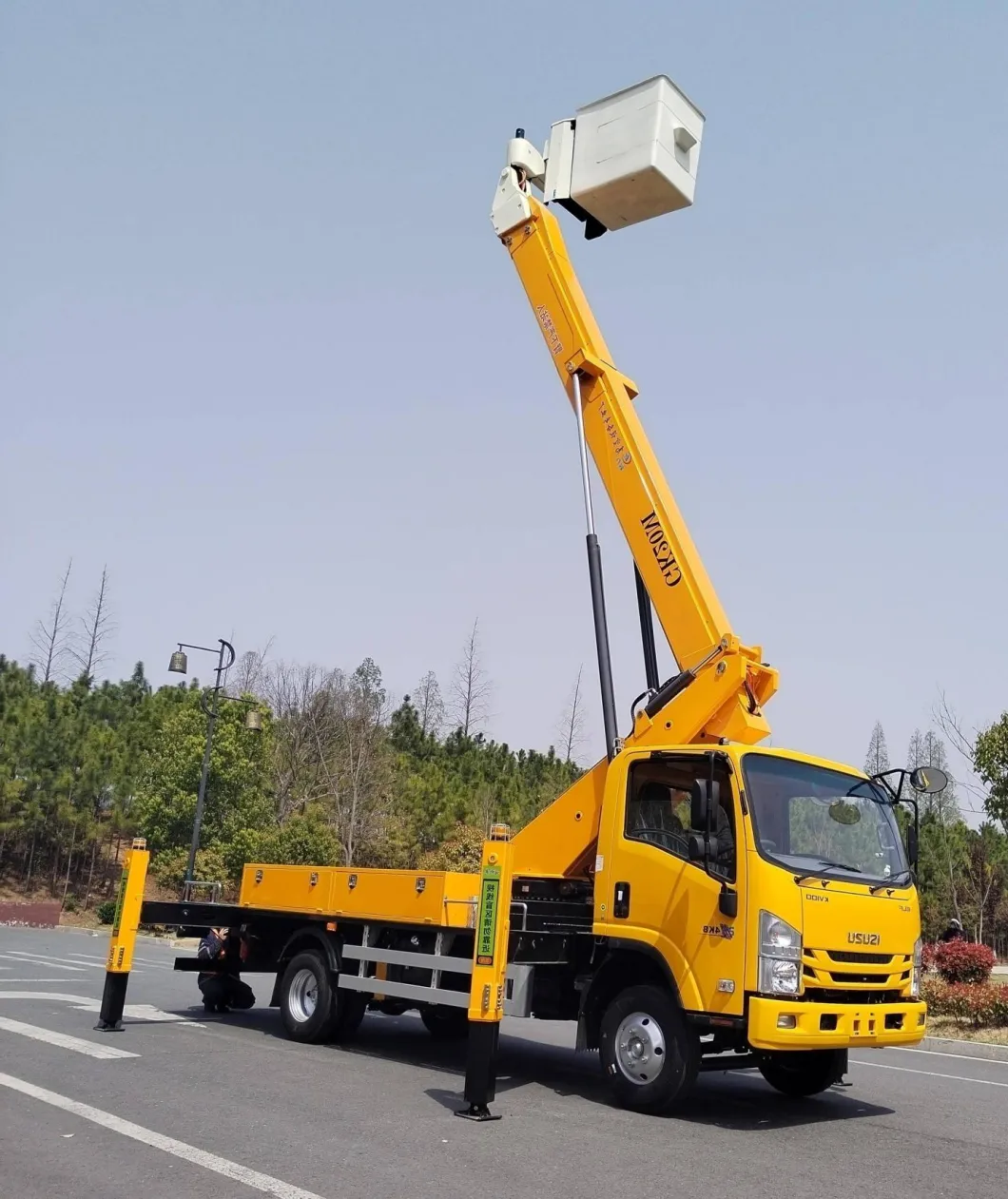

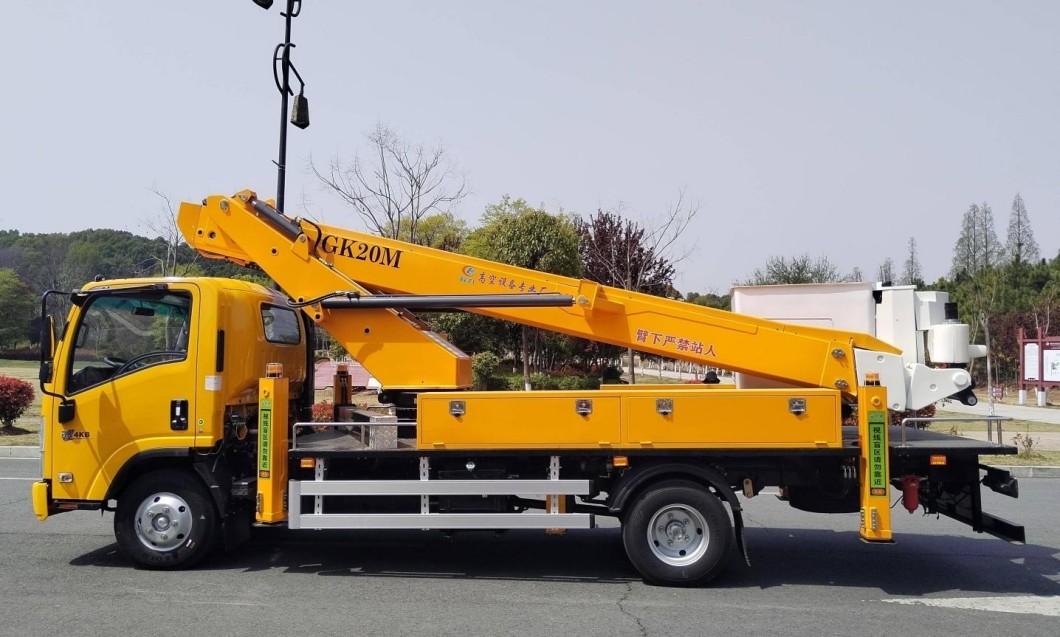

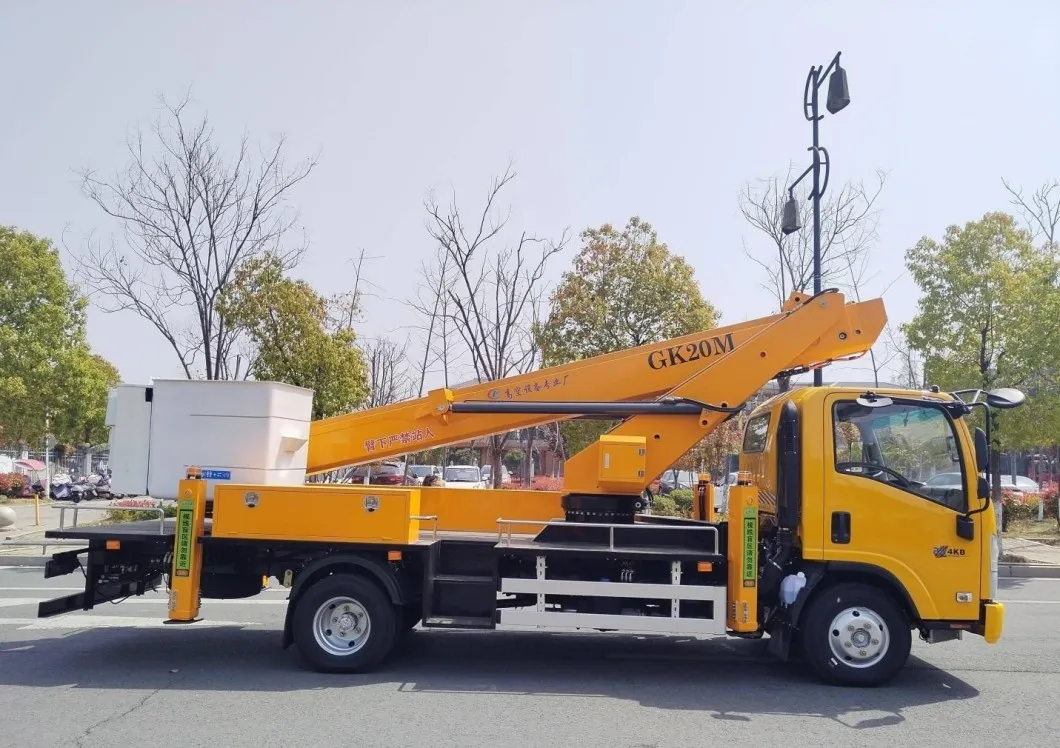

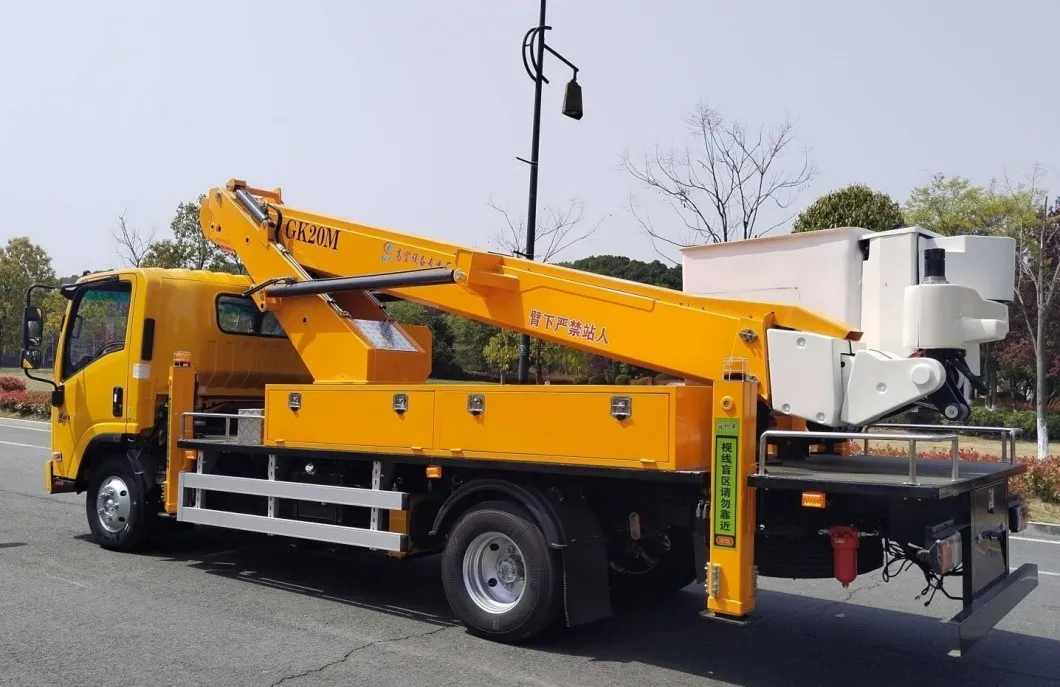

Boom type: Three-section telescopic boom (third section insulated boom) + insulated small elbow

Rotation device: Continuous 360° unlimited rotation within a safe range

Legs: Front V rear H legs, can be adjusted separately, leg transverse/longitudinal span: 4500/4000mm

Automatic interlock device for getting on and off: Used for interlocking when getting on and off to prevent overturning due to misoperation

Operating system: Two sets of operating systems for the working platform and the lower vehicle

Control system: Electro-hydraulic proportional control system

Leveling system: Master-slave hydraulic leveling system

Cylinder anti-retraction device: Safety protection device to prevent the working arm from falling when the hydraulic pipeline fails and the cylinder retracts

Leg anti-retraction device: Lock the leg cylinder when the system suddenly loses pressure to prevent the vehicle from overturning

Emergency electric hydraulic pump: Provide emergency power to send the staff back to the ground when the chassis engine or the main hydraulic pump fails.

 (With emergency stop function)

Others: Engine start and stop device, remote throttle acceleration, hydraulic tool interface, insulated inner lining, hard working bucket waterproof cover,

hydraulic boom luffing and rotation, platform lifting, insulated elbow

FAQ

 Q1. Is your company a factory or a trading company?

  A: We are a leading manufacturer of special trucks, tank trucks, trailers, and spare parts in China. Welcome to visit our special vehicle production

 base in Suizhou City,   China.

 Q2. What are your payment terms?

 A: T/T 30-50% as deposit, the rest to be paid before delivery. We will show you photos of the products and packages before you pay the balance.

 Q3. What are your delivery terms?

 A: EXW, FOB, CFR, CIF, DAF, DDU.

 Q4. How about your delivery time?

 A: Generally, it takes 20 to 30 days after receiving the advance payment. The specific delivery time depends on the items and quantity of the order.

 Q5. Can you customize the products according to my requirements?

 A: Yes. We have a professional R&D team, and we can produce products exactly as you require.

 Q6. What is the price of your products?

 A: We are factory direct sales, so the price is very competitive. Different products have different prices. The price also depends on your special needs.

To know the exact   price, please contact us!

 Q7. Do you test all goods before delivery?

 A: Yes, we do 100% testing before delivery.

 Q8: What seRVices can I get from you?

 A: We provide lifelong tracking services and original accessories for all products. You only need to pay the ex-factory price for the accessories and the

 shipping fee.   Meanwhile, we offer free remote training and technical support to guide you in repairing the products.
